August is the last Bank Holiday of the year, and with the weather set to be 30c+, it provided the ideal weekend to play some radio.

Members of LEFARS and SNBCG came together at Kelvedon Hatch Secret Nuclear bunker for a 3 day radio weekend, including BBQ and camping. Some members of the advanced party arrived on Friday evening helping to set up the operating tents.

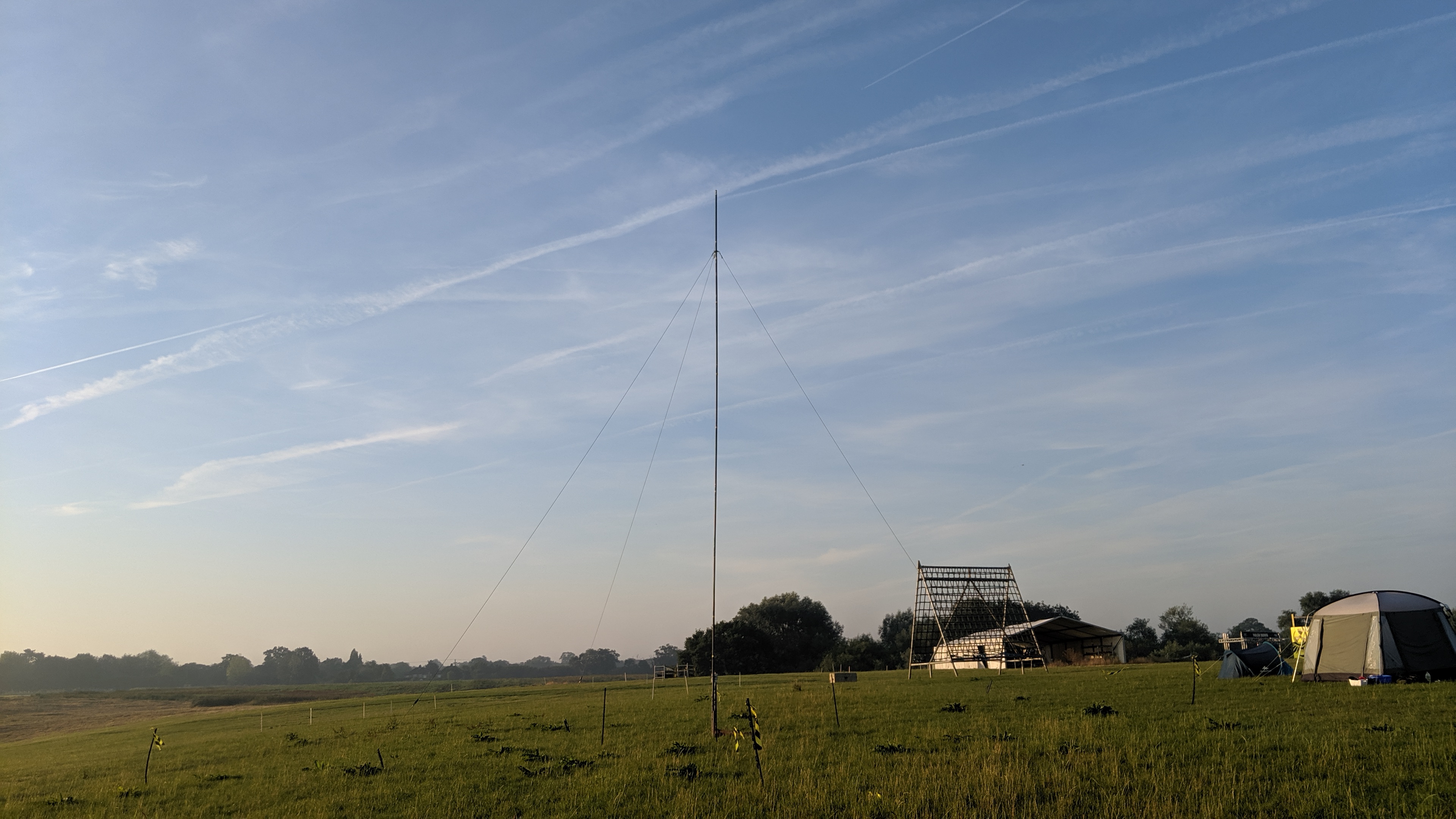

The 40m vertical was the first antenna to go up, this included 4 elevated radials.

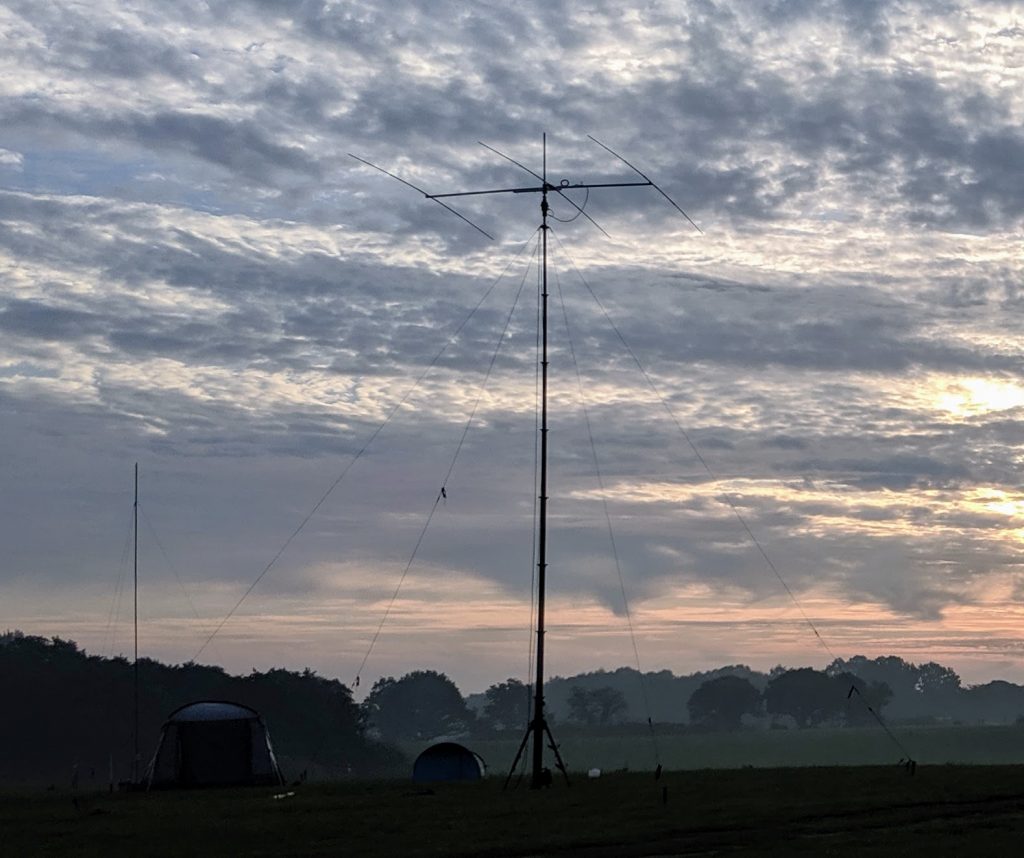

The next antenna was the 3e 18 MHz beam, this was fitted onto the 12m SCAM mast.

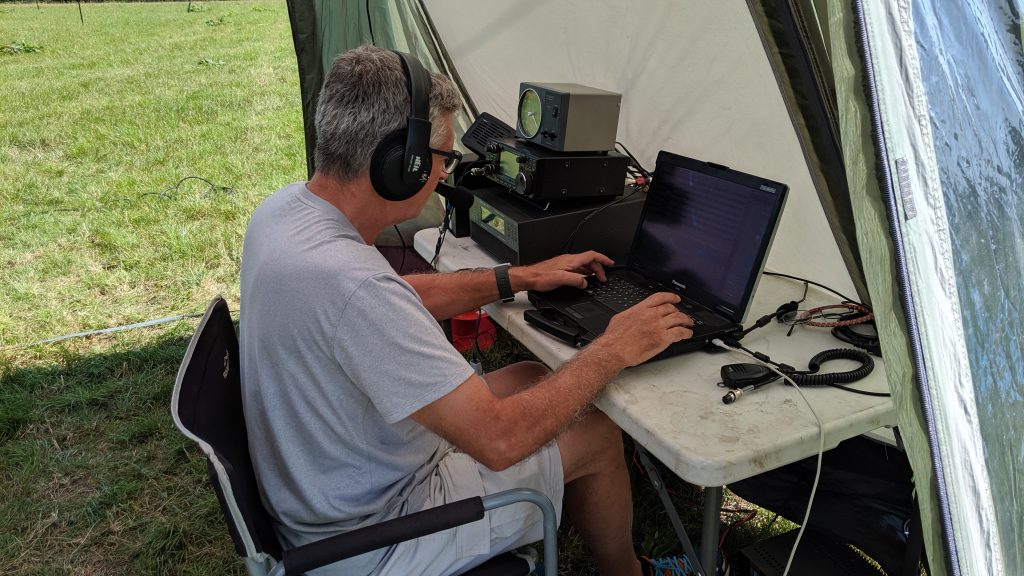

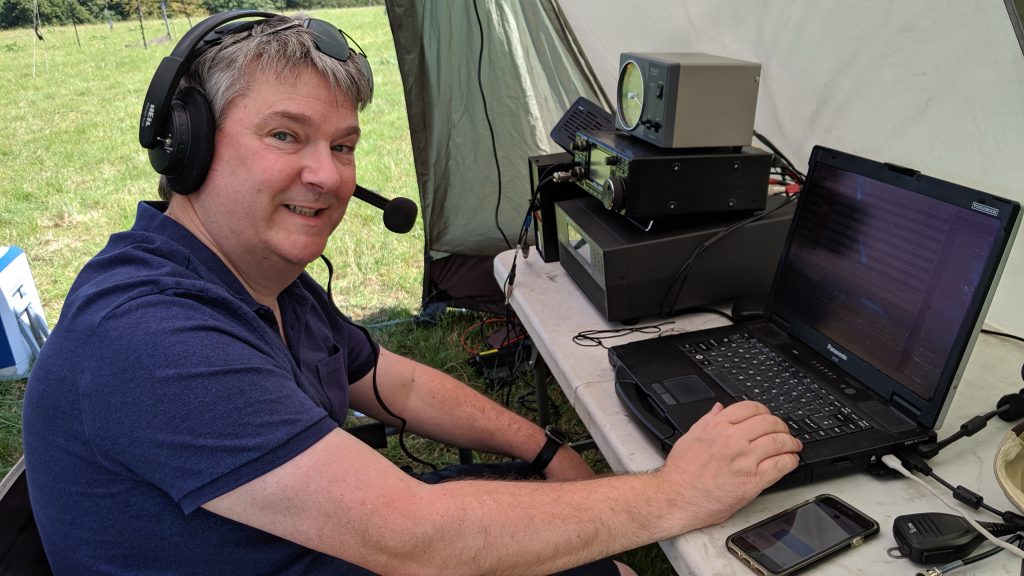

The operating tent was completed with the IC7300 and IC7610 and Expert 1.3K solid-state amplifier.

Peter was delighted to use the 7 MHz vertical and linear, commenting on how much fun it was to run a pile-up! The weekend was all about having fun and trying out new things, Dick G4DDP completed a number of QSO on 50 and 70 MHz working SPe all over EU.

Special thanks to John who repaired my headset with a mono jack plug he de-soldered from his own headset. Thanks, John!

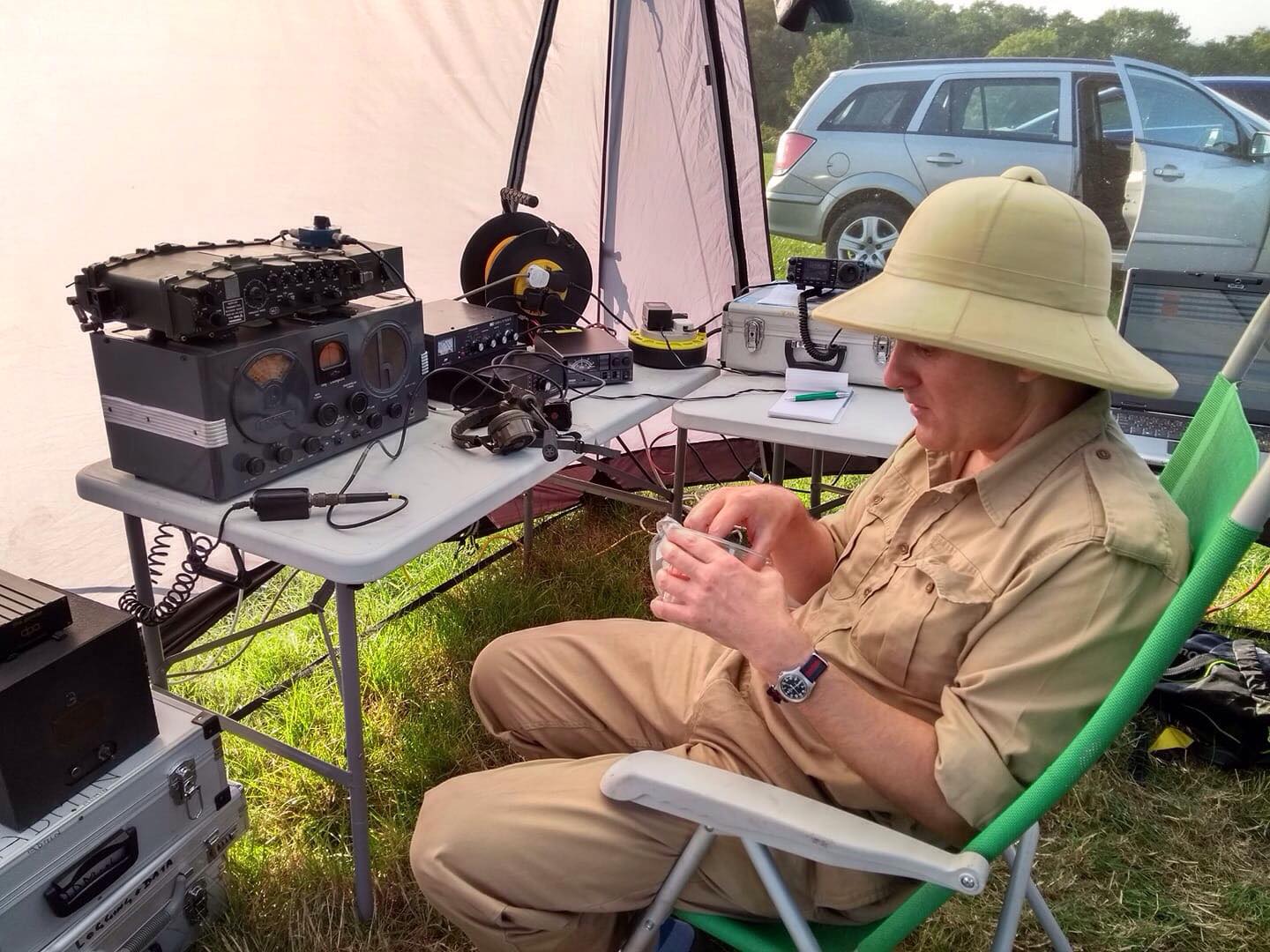

Vintage Dave also decide to operate in period costume, adding to the nostalgia of his vintage wireless equipment.

The BBQ provided by some excellent food, thanks to Ron and Karen for setting this up and Dave M0MDB for his Chillie.

Thanks to Piotr for this clip, it gives you some idea how busy 7 MHz can be on a field day.

Everyone loves a bank holiday weekend (unless you happen to be working) and last weekend was a 3 day radio event run by LEFARS. The event is based at the Rainbow and Dove PH, yes really a radio event in a pub garden !

The event used the special event call GB2LRS on 7 and 144 MHz, while 21 MHz used the Secret Bunker Club call M0SNB. On 7 MHz the club used a doublet antenna, on 21 MHz we used 400w and 4e home-brew beam aerial. The beam was mounted on a 10m Clark pump up past, with a recently purchased Yaesu G1000S rotator. The linear amplifier was a solid state by Expert 1.3K providing flawless power on the Honda generator.

While the band conditions did provide a challenge, we did prove that even on a quiet band its possible to work DX with some power and a good antenna. We worked some nice DX including Uruguay, Brazil and Philippines to name a few.

In the evenings we turned our hand to 3.5 MHz, and I made a simple dipole to hang from the mast. We placed a 1:1 Balun at the feed point, and fed the antenna with coax. The antenna was cut to provide a match on 3.7 MHz, so no ATU was required. The addition of 400w allowed us to put out what many described as a phenomenal signal. I checked the signal on the Hack Green SDR, and from this screenshot you can judge for yourself. The signal reported by Hack Green was -42 dBm.

Fred G3SVK also guest operated, working over 100 station on CW including some USA stations. The total number of QSO over the weekend was 320 mostly on SSB. The conditions at times did throw up a few surprises, at one stage I could hear and worked stations in Ireland at 59 on 21 MHz !

It was also nice to see Charlie M0PZT and Peter G0DZB operating portable both using Elecraft KX3s although both torturing their radios with some old school on-off keying ?
